Towards a Smalltalk VM
for the 21st Century

Boris Shingarov

www.shingarov.com

Challenges of Shifting Reality

Computing is changing
  • What we run on Smalltalk
  • What we run Smalltalk on

What we run on Smalltalk

Complex workload on Smalltalk runtime

  • Complexity of today's average VM bug
    • parallelism, race conditions, complex optimiations
  • "High-level debuggers" do not work
    • this is not a C application
  • In-band solutions (e.g. DTrace-like) partially help

What is "Performance"?

  • Traditional: "Let's make Smalltalk fast"
    • very fast PICs, JIT using ILP hardware features
  • We no longer fit the traditional model
  • Example: Big Data applications challenge the object graph model
    • Packed objects required for less FFI marshalling overhead and improving cache performance
  • New generation of hardware dictating radically new performance metrics
    • What we run Smalltalk on

Old vs New "Conventional Wisdom"

(after Dave Patterson, ACM President)

  • Design Cost Wall
  • Software Legacy Wall
  • Power Wall
  • Memory Wall
  • ILP Wall

End of Uniprocessor Era

Old vs New "Conventional Wisdom"

  • Demonstrate new H/W ideas by building chips
  • No researchers can build believable prototypes
  • H/W hard to change, S/W flexible
  • H/W flexible, S/W hard to change
  • Power is free, transistors expensive
  • Can put more transistors on chip than can afford to turn on
  • Multiply slow, memory access fast
  • 1 RAM access ≈ 200 clocks
  • Increasing ILP: RISC, compilers, out-of-order, VLIW, speculation etc
  • Diminishing returns on more ILP H/W

VM Observation: In-band vs out-of-band

  • VM "communicates" with the processor via the Processor Architecture
    • VM -> Processor: instruction stream
    • Processor -> VM: flags/branching, interrupts
  • In-band observation agents are inherently limited in scope and access, and destructive to machine state
    • stopping at breakpoint destroys the state of memory hierarchy
    • (no access to cache details anyway)

VM Observation: In-band vs out-of-band

  • Out-of-band: VM introspection channels outside of Processor Architecture
    • Invisible to both VM and Processor
    • Varying levels of fidelity
  • Out-of-band examples:
    • Processor functional simulation
    • Hardware-level processor modeling/simulation
      • Instrumented FPGA models
      • Hardware simulation in software

Full-system simulation

  • Simics
  • GEMS
  • M5
  • GEM5
  • OVPsim

Characteristics of FSS

  • Timing Abstractions, levels of accuracy (Software Timed (e.g., QEMU, IBM CECsim), Loosely Timed, Approximately Timed as in TLM-2.0); Temporal Decoupling
  • Observability — full recording of simulation makes possible arbitrarily complex analysis of interaction between any parts of the systems (e.g. signals not hidden on an internal bus of a SoC); stopped time, time warping
  • Checkpointing (persisting full state of simulation), useful for optimizing workflow, communication between teams (e.g. to reproduce a bug), switch between levels of simulation detail
  • Dynamic Reconfiguration
  • Repeatability
  • Reverse execution
  • Intelligent OS awareness

Modules

Simulators are modular and expose an open set of APIs.
  • devices, memory, systems, processors
  • even the foundation of simulation — the time model
  • modules allow full awareness of software running on the simulated system
    • OS awareness (example: Linux process tracker)
    • full symbolic debugging (C)
    • enables full awareness of Smalltalk

Demo: Emitting a magic instruction in JIT

  • A "Magic Instruction" causes simulation breakpoint
  • Example of Program-Simulator signalization
  • Simics Magic Instructions on different architectures:
Target Magic instruction
x86 xchg %bx, %bx encoding: 66 87 DB
ARM orreq rn, rn, rn 0 <= n < 15
PowerPC 32-bitmr n, n 0 <= n < 32
PowerPC 64-bit fmr n, n 0 <= n < 32
SPARC sethi n, %g0 1 <= n < 0x400000

Modify the JIT translator

  • CogIA32Compiler>concretizeMagic
  • CogIA32Compiler>dispatchConcretize
  • CogRTLOpcodes>>initialize
    Add "Magic" to the end and send #initialize. Now our abstract RTL has the magic instruction.
  • Cogit>>Magic
     <inline:true>
     <returnTypeC:#'AbstractInstruction*'>
     ^self gen: Magic

Use the instruction somewhere...

Why not in, say, #genGetClassFormatOfNonInt:into:scratchReg:?

NB: What we are doing is adding to the code emission code, but the actual magic instruction will be part of the emitted N-code, so the break will NOT happen in #genGetClassFormatOfNonInt:into:scratchReg:.

Try simulating it...

  • Regenerate VM sources
  • Compile the VM
  • Run under simulation
    • ./NBCog --nodisplay simple.image eval '2+3'
  • Now with magic-break-enable

Let's look around

simics> pregs
32-bit legacy protected mode
eax = 0x00000001, ax = 0x0001, ah = 0x00, al = 0x01
ecx = 0x00000006, cx = 0x0006, ch = 0x00, cl = 0x06
edx = 0x944f9540, dx = 0x9540, dh = 0x95, dl = 0x40
ebx = 0x00000004, bx = 0x0004, bh = 0x00, bl = 0x04
esp = 0xbf869670, sp = 0x9670
ebp = 0xbf869680, bp = 0x9680
esi = 0x00000003, si = 0x0003
edi = 0x00000003, di = 0x0003

eip = 0x93cff260, linear = 0x93cff260

eflags = 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0 = 0x00000202
receiver in %EDX

Let's look around (cont.)

simics> x l:0x944f9540 4
l:0x944f9540  1d04 9a12      <- receiver's object header

class oop in header word 2, offset -4:

simics> x l:0x944f953C 4
l:0x944f9530     813e 1194    <- class oop

A rudimentary Smalltalk module

Look at the object memory using Simics Python API

def print_class_of_oop(oop):
    if ((oop & 1)==1):
       print "SmallInteger"
    else:
       headerType = smalltalk_headerType(oop)
       if (headerType==3):
          print "...looks like compact class..."
       else:
          word2 = read_virt_value(oop-4, 4)
          classOop = word2&0xFFFFFFFC
          print "class oop: ", hex(classOop)
          classNameOop = read_virt_value(classOop+32, 4)
          print "class name oop: ", hex(classNameOop)
          str=""
          for offset in range(smalltalk_objByteSize(classNameOop)):
              str += "%c" % read_virt_value(classNameOop + 4 + offset, 1)
          print str

Make it into a command...

new_command("print-class-of-oop", print_class_of_oop,
            [arg(int_t, "oop")],
            type = "Debugging",
            see_also = [],
            short = "describe an oop",
            doc = """
Print the class of oop.""")

Try printing classes of some OOPs...

simics> print-class-of-oop %edx
class oop:  0x94113E80L
class name oop:  0x93F401CCL
WeakAnnouncementSubscription
simics> print-class-of-oop 0x93F401CC
class oop:  0x940FB4B4L
class name oop:  0x93E94140L
ByteSymbol

Closer to practice

  • Debugging a SIGSEGV
  • Put simulation breakpoint in SEGV handler
  • Because everything is recorded, we can step back to the source of the bug
  • Can solve bugs that are hopelessly complex for in-band approach

Digging deeper — MAI mode

  • Vanilla Simics operates at instruction level
  • Micro Architectural Interface allows detailed modeling of processor pipelines, out-of-order-execution and timing of cache hierarchies
  • Simulation speed / fidelity tradeoff
  • Save checkpoint state and simulate detail of only the interesting pieces

Digging even deeper

  • GEM5
    • www.m5sim.org
  • detailed full-system and microarchitectural models
  • Ruby memory hierarchy system
  • Cache coherence modeling
  • Opal (aka TFSim) — SPARCv9 out-of-order processor
  • AtomicSimple / TimingSimple / InOrder / O3CPU processor models

Can we go even further?

  • looking at what's happening inside the processor in even more detail
  • Hardware to exeriment with processors is within reach
  • Open-source hardware IP has matured: Practically important processors and SoCs in production

Some interesting processors

  • OpenSPARC
    • implements SPARCv9 (64-bit) ISA
    • T1: 8 cores x 4 threads UltraSPARC released as open-source Verilog
  • LEON3
    • SPARCv8 (32-bit) ISA
    • Used by major aerospace projects (ISS...)
  • Storm ARM processor and SoC
  • ATLAS
  • Amber (ARM ISA compatible)

Smalltalk instrumentation

  • Out-of-band introspection of OpenSPARC on Xilinx Virtex-5
  • Debug interface based on the MicroBlaze service processor (same core running the CCX)
  • Physical communication over JTAG

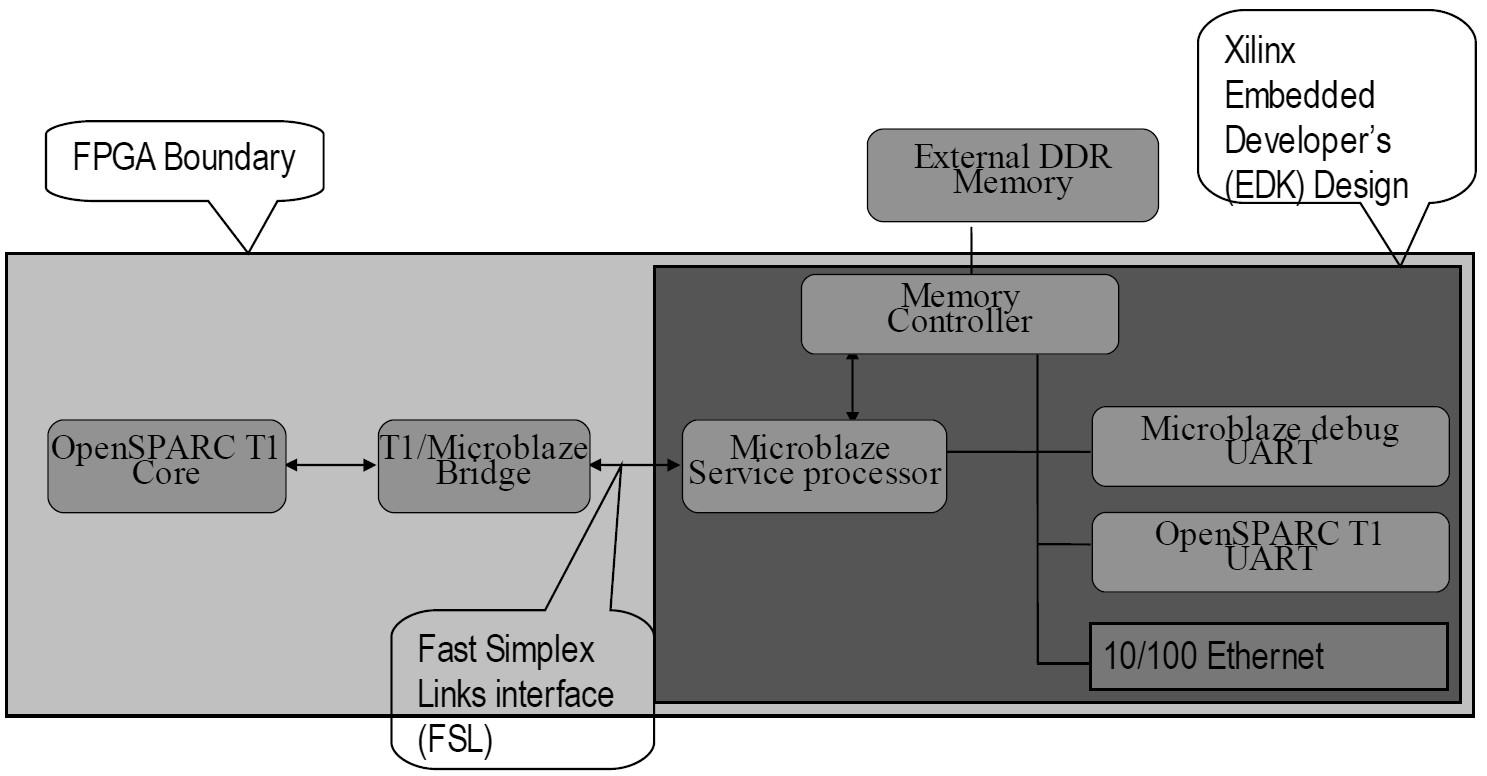

Basic T1

Implementation on Virtex-5

Even more challenges

Speed vs Power

  • Power-Optimized JIT
    • Instruction selection, intruction scheduling etc.
  • explicit power mamagement
    • voltage scaling
  • W = U2 / R
  • You don't want to run as fast as you can
    • missing integration mechanism to tell

References

  • G.Wright et al.: Introspection of a Java Virtual Machine under Simulation. SMLI TR-2006-159, Sun Microsystems, 2006.
  • R.Leupers, O.Temam (eds.): Processor and System-on-Chip Simulation. Springer, 2010.
